Glowline 18
  • Glowline 18

Spacecannon Glowline 18

Glowline is a low profile linear acrylic LED fitting providing a vivid, even strip of light.

Categories: ,

Glowline 18 is a low profile linear acrylic LED fitting providing a vivid, even strip of light at 18mm in width. A versatile product that can adapt to many applications, ranging from delicate indoor accent lighting through to stylish IP rated external solutions.



For more information please contact us.

  • Mono, Tunable White, RGB, RGBW to Pixel configurations
  • 18mm width for fine edge accenting or high resolution facade solutions
  • 24-48V for remote supply designs
  • Many custom options available

Input Voltage: 24-48 Vdc

IP Rating: IP66

IK Rating: IK08

Power: 12W/m

Surge Protection: 6kV, 10kv (optional)

Colour Temp: 2700, 3000, 4000k, 5700, 6500K, RGB, RGBW

Operating Temp: -30 to + 60 c

Dimming Options: DALI, DMX

Connector Options: 4 Pin Multicore, Plug and Play

Optics: 120º degrees

Mount: Surface

Finish: Black, White, Silver (other colours on request)

Dimensions: 18mm width/ 305mm/610mm/915mm/1220mm/500mm/1000mm/2000mm

*Specifications subject to change without notice

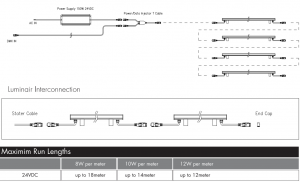

Glowline 18 connection diagram

[icon type=”glyphicon glyphicon-save” color=”#1e73be” fontsize=”14″] Spacecannon Glowline 18
