Home / Architectural & Feature Lighting / Spacecannon Pixel String 8
Pixel 8 Node String
  • Pixel 8 Node String
  • Pixel 8 Node

Spacecannon Pixel String 8

Login to view price

The Pixel-series of luminaires are high-output compact LED nodes designed for decorative outdoor applications. Pixel String 8 is powered by eight Philips Luxeon Rebel LEDs, and is available in single colour, warm/cool white, RGB, RGBW and colour-changing or custom-configuration.

Categories: Direct View, Architectural & Feature Lighting Tag: Spacecannon
  • Description
  • Features
  • Specifications

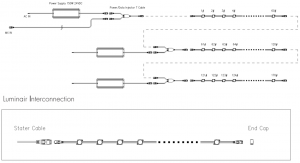

  • Schematic
  • Downloads

The Pixel-series of luminaires are high-output compact LED nodes designed for decorative outdoor applications. The Pixel 8 is powered by eight Philips Luxeon Rebel LEDs, and is available in single colour, warm/cool white, RGB, RGBW and colour-changing or custom-configuration.

Capable of highlighting architectural features in large scale pixel-mapping applications, it’s equally suited for small to medium decorative projects. With custom spacing options and mounts Pixel 8 is very suited for catenary style installations.

Fully dimmable with integral DMX and RDM for remote address-setting and diagnostics, Pixel String 8 is the perfect choice for special effect and architectural feature lighting.



For more information please contact us.

  • Mono, Tunable White, RGB, RGBW
  • 30mm diameter node with built in surface mount
  • 24DC
  • Plug and Play Installation
  • UV Stabilized PC materials
  • Many custom options available

Input Voltage: 24 Vdc

IP Rating: IP67

IK Rating: IK10

Power: 1.5W/node

Colour Temp: 2700, 3000, 4000k, 5700, 6500K, RGB, RGBW

Operating Temp: -30 to + 60 c

Dimming Options: DMX

Connector Options: 5 Pin Multicore, Plug and Play

Optics: 120º degrees

Mount: Surface, Catenary

Materials: PC (Polycarbonate)

Finish: Black, White

Spacing: 150mm/200mm/250mm/399mm and custom spacing on request

*Specifications subject to change without notice
