Tridonic TR-DR28002414
  • Tridonic TR-DR28002414
  • Tridonic TR-DR28002414 extra

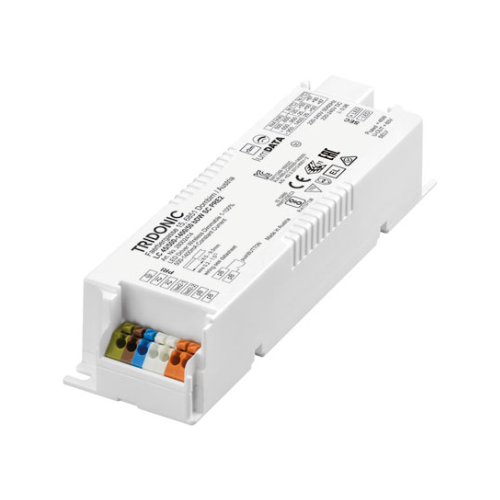

Tridonic Constant Current Casambi Driver LC 45/500-1400/50 bDW SC PRE2

NOTE:

Terminal covers/strain relief and I-SELECT 2 plugs for current selection are sold separately

SKU: TR-DR28002414 Categories: , , Brand:

Casambi/BasicDIM Constant Current 45W 500-1400mA driver, adjustable with I-SELECT 2 plugs, strain relief sold seperately

  • Can be integrated in Casambi systems (Casambi Ready)
  • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Dimmable built-in constant current LED driver
  • Can be either used built-in or independent with clip-on strain-relief (see accessory)
  • Forms automatically a wireless communication network with up to 250 nodes
  • Adjustable output current between 500 and 1,400 mA via I-SELECT 2 plugs
  • Max. output power 45 W
  • Up to 91 % efficiency
  • Power input on stand-by < 0.35 W
  • Dimming range 1 to 100 %
  • For luminaires of protection class I and protection class II
  • Nominal lifetime up to 100,000 h

⬇️ Data Sheet
