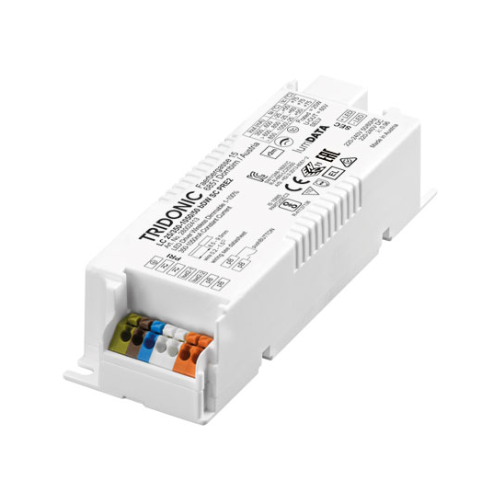

Tridonic Constant Current Casambi Driver LC 25/350-1050/50 bDW SC PRE2

NOTE:

Terminal covers/strain relief and I-SELECT 2 plugs for current selection are sold separately

SKU: TR-DR28002413 Categories: , , Brand:

Casambi/BasicDIM Constant Current 25W 350-1050mA driver, adjustable with I-SELECT 2 plugs, strain relief sold seperately

  • Can be integrated in Casambi systems (Casambi Ready)
  • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Dimmable built-in constant current LED driver
  • Can be either used built-in or independent with clip-on strain-relief (see accessory)
  • Forms automatically a wireless communication network with up to 250 nodes
  • Adjustable output current between 350 and 1,050 mA via I-SELECT 2 plugs
  • Max. output power 25 W
  • Up to 90 % efficiency
  • Power input on stand-by < 0.37 W
  • Dimming range 1 to 100 %
  • For luminaires of protection class I and protection class II
  • Nominal lifetime up to 100,000 h
