Tridonic TR-DR28002418
  • Tridonic TR-DR28002418
  • Tridonic TR-DR28002418 extra
  • Tridonic TR-DR28002418 extra 2

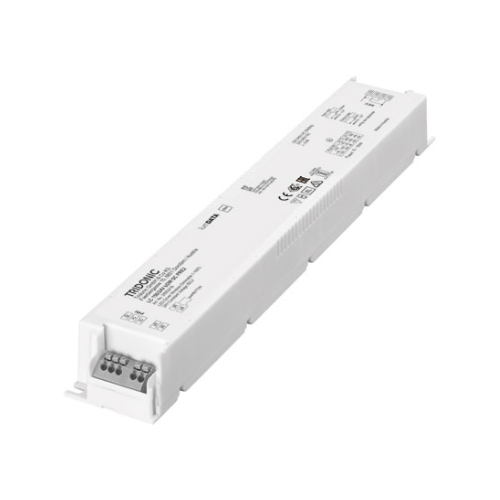

Tridonic Constant Voltage Casambi Driver LC 150/24V bDW SC PRE2

NOTE:

Terminal covers/strain relief and I-SELECT 2 plugs for current selection are sold separately

SKU: TR-DR28002418 Categories: , Brand:

Casambi/BasicDIM Constant Voltage 150W 24VDC output PSU/Driver, strain relief sold seperately

  • an be integrated in Casambi systems (Casambi Ready)
  • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
  • Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
  • The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
  • basicDIM Wireless enables different dimming options
  • Forms automatically a wireless communication network with up to 250 nodes
  • Dimming range 1 to 100 %
  • No additional external dimmer is needed
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • Nominal lifetime up to 50,000 h

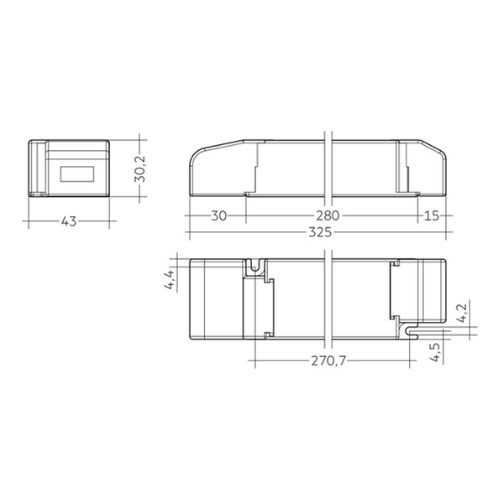

With strain-relief:

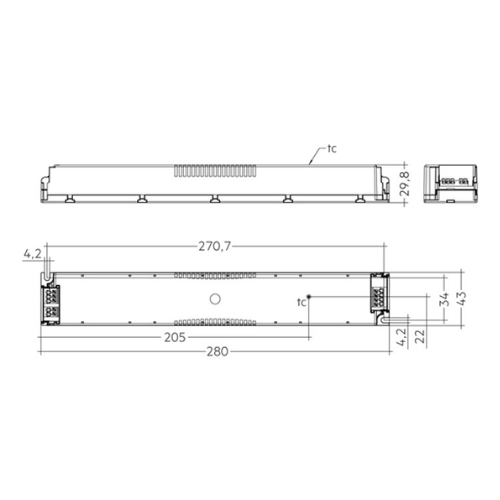

Without strain-relief:
