DDRC810DT-GL Relay Controller

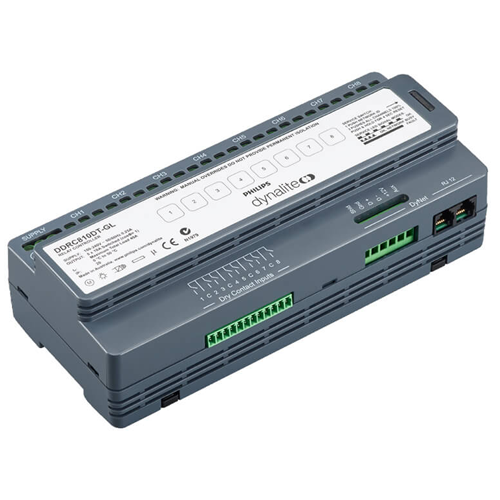

The Philips Dynalite DDRC810DT-GL is an 8 channel dual throw relay.

Category: Relay Controllers
  • Description
  • Features
  • Specifications
  • Schematic
  • Downloads

Designed to operate any type of switched load

The Philips Dynalite DDRC810DT-GL is ideal for controlling bi-directional motors, such as curtain and blind motors. It is an eight channel device suitable for any switched load up to 10 A per channel, with a maximum box load of 40 A.

• Voltage free changeover SPDT output relays — Perfect for controlling bi-directional motors.

• Flexible mounting solution — A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.

• Inbuilt diagnostic functionality — Features circuit run time tracking on each channel.

• Standalone or networked operation — Can operate as a discrete standalone unit, or as part of an integrated control system when connected to the DyNet network.

Item Specification Details
Input Voltage 100 – 240 VAC 50 / 60 Hz Single Phase @ 0.25 A
DyNet DC Supply 12 V @120 mA (supply for approx 6 user interfaces)
Outputs 8 x switched SPDT voltage free changeover outputs Maximum ratings for each output: 10 A (NO) / 5 A (NC) 250 VAC (resistive) 24 VDC (resistive)
Electrical Maximum device load 40 A Note: Snubbers/spark killers not fitted. De-rate for reactive loads. Functional isolation only between switched outputs. Do not mix SELV and nonSELV loads on the same device.
Control Inputs/Outputs One DMX512 / RS-485 DyNet serial port
One programmable dry contact AUX input
Control User Controls Manual override switch for each channel
Service switch
Diagnostic LED
Internal Controls Programmable Logic Controller
Preset Scenes 170
Diagnostic Functions Ciruit run time tracking on each channel
Supply Terminals Line, Neutral, Earth
0.2-5 mm2 (24-10 AWG) conductor size
Physical Dimensions (H x W x D) 93 mm x 215 mm x 64 mm
Packed Weight 0.54kg
Construction Polycarbonate DIN-rail enclosure (12 unit)
Operating Conditions Temperature:  0 to 50° C ambient
Humidity:  0 to 95% non-condensing
Storage & Transport Temperature:  -25 to 60°C ambient
Humidity:  0 to 90% non-condensing
Certification Certification CE, RCM
Options & Ordering Standard Product DDRC810DT-GL (Philips 12NC 913703035209)
