BasicDIM fixture mounted microwave sensor

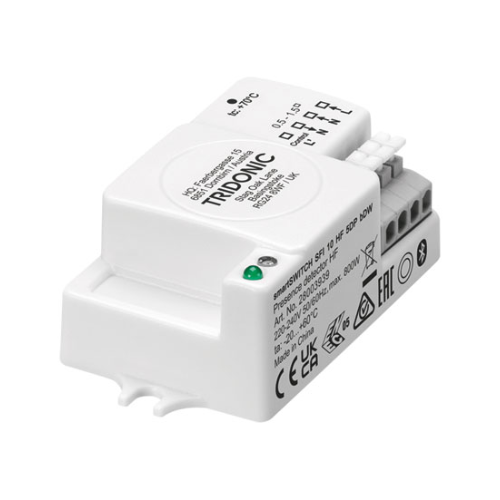

Tridonic basicDim Casambi Fixture Mount Microwave Sensor
Login to view price
- Component of the basicDIM Wireless system (Casambi Ready)
- Wireless controllable with an Android / iOS smart device
- No need for an external gateway device
- Forms automatically a wireless communication network with up to 250 nodes
- Independent relay or sensor application possible (adjustable via profiles)
- Motion detector for luminaire installation
- Motion detection through glass and thin materials (except metal)
- For automatic on/off switching of luminaires with electronic ballasts and LED drivers
- Bright-out function: luminaire is not switched on if there is adequate brightness
- Delay time, detection range and light value for the bright-out function can be set via 4remoteBT App
- Max. installation height 5 m
- Variable detection area (100 – 10 %)
- Zero cross switching supported
Data SheetRelated products
