Name: DMC2-CE - Multipurpose Modular Controller
Brand: Dynalite
SKU: DMC2-CE

Multipurpose Modular Controller

The Philips Dynalite DMC2 provides multichannel control via two interchangeable modules. The device is available with a variety of control modules to handle various load types and capacities.

The Philips Dynalite DMC2 provides multichannel control via two interchangeable modules. The device is available with a variety of control modules to handle various load types and capacities. The DMC2 is available in CE and UL certified variants.

• Single controller solution – Control a multitude of load types from one device, suited to any segment requiring lighting or relay control.

• Phase-cut dimmer module – Selectable per channel for leading or trailing edge output. Compatible with most dimming loads.

• Signal dimming module – Suitable for controlling 1-10V, DSI and DALI broadcast drivers. Built-in relays remove power when channel level is at 0%.

• Relay control module – Suitable for controlling most types of switched loads.

• Flexible mounting solution – Surface or recess mountable enclosure.

• Passive cooling – Fanless design reduces noise, power consumption and maintenance costs.

Item	Specification	Details

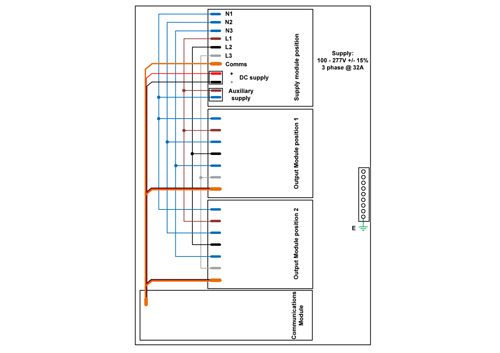

	Input Voltage	120/208, 230/400, 277/480 VAC (+10% / -15%)
		3-Phase, 4-Wire (Y), or Single Phase
		IEC Overvoltage Category III
	Input Current	32A per phase or single phase 63A max
	Input Frequency	50/60Hz
	DyNet DC Supply	12/24VDC (selectable) @ max 200mA (Class 2)
		DMD310-CE*: 3 x 10A 1-10 V, DSI or DALI broadcast
		DMD316-CE*: 3 x 16A 1-10 V, DSI or DALI broadcast
		1-10V: 50mA sink/source, max 100 drivers per channel
		DALI/DSI: 16VDC 130mA nom.
		max drivers: 64 per channel (192 per module)
		max current: 190mA per channel
Electrical		(No external DALI power supply permitted)
		DMP310-GL-CE*: 3 x 10A Leading/Trailing Edge dimming.
		Maximum module output 14A
		Current limited to 4.3A per channel at 277V
	Control Modules	DMR310-CE*: 3 x 10A relay (lighting and resistive load),
		1HP (120/230/277V) (motor load)
		DMR316-CE*: 3 x 16A relay (lighting and resistive load),
		1HP (120V), 2HP (230/277V) (motor load)

		* Line, Neutral for each channel
		Conductor size 1 x 16 mm² (AWG6)
		Inrush current rating: 500 A for 200 µs

		One RS-485 DyNet serial por
		(1 x 5-way pluggable screw terminal + 3 x RJ-12 sockets)
		One DMX512 Rx port
	Communication Module	Four programmable dry contact AUX inputs (non-isolated)
		One UL924 trigger input†
		Service switch
Control		Diagnostic LED
		Channel override keypad
		† This function must only be used with systems complying to UL924, and must not be used with any other system.

	Diagnostic Functions	Device online/offline status
		Channel on/off/faulty status
		DyNet Watchdog

Physical	Supply Module	Line 1, Line 2, Line 3, Neutral 1x16mm² (#6-20 AWG) max conductor size. Earth link bar provided
	Dimensions (H x W x D	540mm x 380mm x 103mm
		DMC2 8.9kg
		DSM2-XX 1.1kg
	Packed Weight	DCM-DyNet 0.8kg
		DMR31X 1.7kg
		DMD31X 1.8kg
		DMP310-GL 2.1kg
	Constructio	Galvanized steel case with powder coated front covers
	Operating Conditions	Temperature: 0 to 40°C (32 to 104°F) ambient
		Humidity: 0 to 95% non-condensing
		IEC Pollution Degree II
	Storage & Transport	Temperature: -25 to 60°C (-13 to 140°F) ambient
		Humidity: 0 to 90% non-condensing
Certification	Certification	High SCCR 22 kA @ 277 VAC (UL67)



Options & Ordering	Naming Format	DMC2-CE (Philips 12NC – 913703666109)
		DMD310-CE (Philips 12NC – 913703666609)
		DMD316-CE (Philips 12NC – 913703666709)
		DMP310-GL-CE (Philips 12NC – 913703666809)
		DMR310-CE (Philips 12NC – 913703666409)
		DMR316-CE (Philips 12NC – 913703666509)
		DCM-DyNet (Philips 12NC – 913703666209) DSM2-XX (Philips 12NC – 913703500509)
	RCBO modules	DMD310-RCBO-CE (Philips 12NC – 913703667109)
		DMD316-RCBO-CE (Philips 12NC – 913703667209)
		DMP310-GL-RCBO-CE (Philips 12NC – 913703667309)
		DMR310-RCBO-CE (Philips 12NC – 913703666909)
		DMR316-RCBO-CE (Philips 12NC – 913703667009)
