DALI Rotary Dimmer
  • DALI Rotary Dimmer

DALI-RD20-M Rotary Dimmer

Smartscape DALI-RD20-M DALI Rotary Dimmer

Category: Standalone Dimmers
  • Description
  • Features
  • Specifications

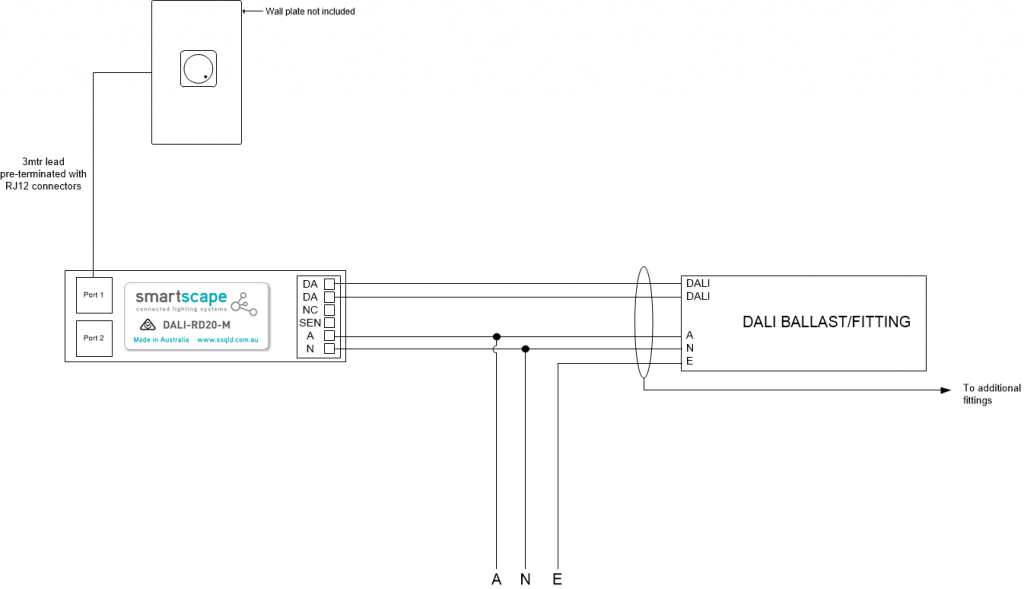

  • Schematic
  • Downloads

A standalone rotary style DALI dimmer made to fit into 30 series compatible wall plates.


Simply push the knob to turn lights on & off and rotate the knob to set the desired light level.


Using the optional accessory, use standard push buttons for further scene control or add a slave unit for 2 way functionality.


Seamlessly integrate with standard 240v motion sensors or interface to other building systems with our input accessory.


For more information please feel free to contact us.

• DALI Broadcast for up to 20 ballasts per Master Unit
(multiple units can be connected together to control more ballasts)
• Multiple dimmers can be fitted to standard 30 series compatible wall plate
• Add slave unit (DALI-RD20-S) for simple 2 way control
• Add standard pushbuttons for separate on/off or scene recall (with optional accessory)
• 240v sensor input for seamless integration with standard motion sensors
• Integrate with 3rd party systems (security, fire etc) with optional input accessory

Power Supply: 220 – 240VAC 50Hz
Number of DALI Ballasts: 20 per master unit
DALI Mode: Broadcast
Dimming Range: 1-100%
Switch on Level: 100% (default), Previous Level or set percentage optional
Sensor Mode: Manual On Auto Off (default), Auto on Auto Off Optional
Sensor additional run on time: 0, 15, 30 or 60 minutes
Finish: Standard White, other colours available on request
Certification: AS/NZS 60335.1: 2011 + A1 + A2 + A3 + A4 + A5
Dimensions (control unit): 125mm(L), 40mm(W), 30mm(D)

  Download Data Sheet
